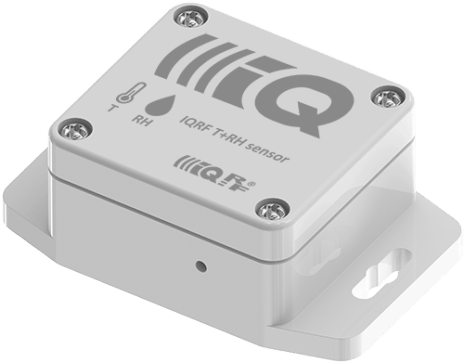

Industrial temperature and relative humidity sensor in a box with a hole with a semi-permeable membrane and IP40 protection.
| Parameter | Value |
|---|---|
| Dimension | 64 mm (94 mm with flange) x 58 mm x 35 mm |
| Weight | 105 g |
| Transmission technology | IQRF |
| Temperature | The sensor can be used for measurements in the temperature range: -20 °C to 70 °C (for recommendations, see "Battery life") |
| Relative humidity | 0 - 80 % (without icing and condensation) |
| Range | tens of meters in buildings (depending on the environment and obstacles), up to 400 m in open space,
many times more than the Wi-Fi signal. |
| Battery life | We provide a 7-year battery warranty provided that:
✓ The sensor has been used in the temperature range 0 °C to 45 °C at all times ✓ the relative humidity does not exceed 80% during the entire period of use |
| IP protection | IP40 |
| Power supply | AA 3,6 V, 2400 mAh battery |
| RF band | IQRF 868 MHz (optionally 916 MHz) |
The sensor is delivered in an industrial box with a hole covered with a semipermeable membrane.
Up to 400 m in open space, tens of meters in buildings. Compared to the Wi-Fi signal, it is many times more.
Devices using IQRF wireless technology can operate in a variety of operating modes, resulting in low power consumption and long life.
Thanks to the battery design, you will save the installation of long and expensive cables, you will not have to make any interventions in the plaster or install the cover strips.
The temperature sensor is factory calibrated, so you will get comparable and correct temperature measurement results from different sensors.
Observe operating conditions to ensure optimal battery and sensor life. We guarantee battery operation for 7 years if they are observed. It will serve you longer, for more than 10 years.
